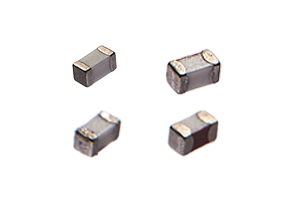

Multilayer Ceramic Chip Inductor
MCI(Commercial Grade)
FEATURES
?Multilayer design with ceramic design
?High SRF up to 15Ghz
?Small size and small tolerance available
APPLICATION
?HF application
FEATURES
?Multilayer design with ceramic design
?High SRF up to 15Ghz
?Small size and small tolerance available
APPLICATION
?HF application
| Picture | Serial No. | Dimension(mm) | Inductance(nH) | Temperature Rise Current(mA) | DC Resistance(Ω) | Self Resonant Frequency(MHz) | Download |
 | MCI0201 | 0.6*0.3*0.3 | 1.0~39.0 | 200~300 | 0.06~1.6 | 1400~13000 |  |
 | MCI0402 | 1.0*0.5*0.5 | 1.0~120 | 100~300 | 0.12~2.5 | 750~15000 | |
 | MCI1005 | 1.0*0.5*0.5 | 1.0~68.0 | 180~300 | 0.09~2.0 | 750~10000 | |
 | MCI1608 | 1.6*0.8*0.8 | 1.0~270 | 150~300 | 0.05~1.9 | 300~10000 | |
 | MCI0603 | 1.6*0.8*0.8 | 1.0~220 | 600 | 0.1~2.8 | 450~17000 | |
