FEATURES
?Monolithic inorganic material construction
?Closed magne cticircuit avoids crosstalk
?Suitable for re?ow soldering
?Available in various sizes
?Operating temperature:-55°C to +125°C
APPLICATION
?Data lines and low power lines
?Connection between digital and analog circuit

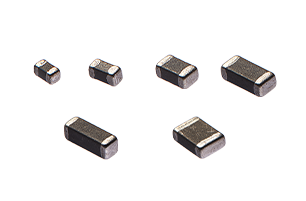

| 产品图 | 系列号 | 尺寸(mm) | 阻抗(Ω) | 温升电流(mA) | 直流电阻(Ω) | 文件下载 |
 | FBHE0402 | 1.0*0.5*0.5 | 10~220 | 1500~3000 | 0.022~0.15 |  |
 | FBHE0603 | 1.6*0.8*(0.6~0.8) | 26~600 | 1000~6000 | 0.01~0.20 | |
 | FBHE0805 | 2*1.25*0.85 | 30~600 | 1000~6000 | 0.04~0.20 | |
 | FBHE1206 | 3.2*1.6*1.1 | 30~600 | 1000~3000 | 0.02~0.20 | |
 | FBHE1206S | 3.2*1.6*1.1 | 30~1000 | 2000~12000 | 0.0025~0.075 | |
 | FBHE1806 | 4.5*1.6*1.6 | 60~1000 | 1500~6000 | 0.01~0.15 | |
 | FBHE1812 | 4.5*3.2*1.5 | 80~1300 | 3000~6000 | 0.01~0.06 | |
